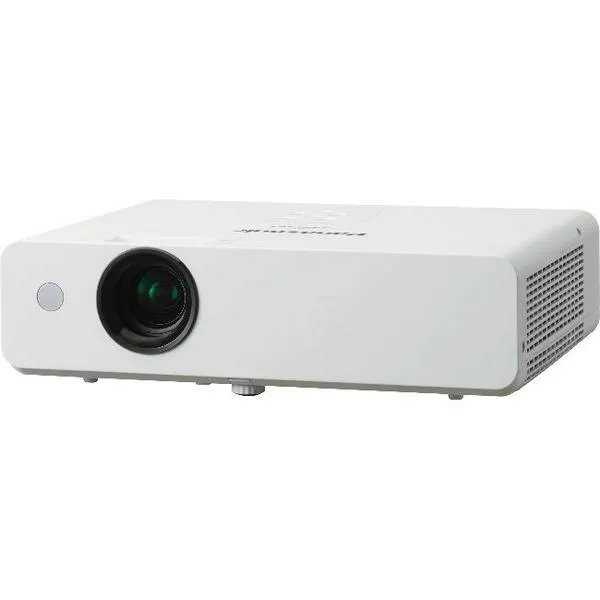

Enjoy detailed high-resolution images with the Panasonic PT-LB330 3300 Lumen XGA 3LCD Multimedia Projector. It features 3300 Lumens of brightness and a 10,000:1 contrast ratio. Additionally, this projector sports a XGA 1024 x 768 native resolution for viewing detailed contents. The PT-LB330 is powered by a 3LCD chip system, and the lamp features a long life of up to 8000 hours. You can use the PT-LB330 to project up to a 300" diagonal screen size, and it features a 1.48 to 1.78:1 throw ratio.
With VGA, HDMI, S-video, and composite video inputs, this projector is well equipped for external video sources. This projector also supports USB memory drive connectivity for photo and PDF viewing. Other features include a low 28 dB Eco2 noise level, optional ceiling mount compatibility, and a 1.2x zoom. A 10W speaker is also built into the projector for audio playback.
Specifications
- White Brightness:3,300 ANSI Lumens
- Resolution:1024x768
- Aspect Ratio:4:3 (XGA)
- Contrast:10,000:1 (full on/off)
- Dynamic Iris:Yes
- Display Type:0.63" 3LCD Chips
- Color Processing:8-bit
- Video Modes:720p, 1080i, 1080p/60, 1080p/24, 1080p/25, 1080p/50, 525i, 525p, 625i, 1125i, 480p, 480i
- Lamp Type:230W UHM bulb
- Lamp Life:5,000 hours / 8,000 hours (Eco)
- Lamp Model:ET-LAL500 Buy Replacement Lamp
- Included Lens:1.2x manual zoom , manual focus
- Optional Lenses:No
- Lens Shift:No
- Throw Distance:3.6' - 31.4' Calculate Throw Distance
- Image Size:30.34" - 300.23"
- Throw Ratio:1.58:1 - 1.90:1 (D:W)
- Projector Placement
- For a
- 100
- diagonal screen, place the projector lens between 10'-4" and 12'-5" from the screen.
- Digital Zoom:Yes
- Digital Keystone:Horizontal & Vertical
- Projector Size:3.78" x 13.19" x 9.92" (HxWxD)
- Weight:6.2 lbs
- Audible Noise:37 dB / 33 dB (Eco)
- Internal Speakers:10.0 Watts Mono
- Power:300 Watts 100V - 240V
- Connection Panel
- Audio In: Mini Jack
- Audio In: RCA
- Audio Out: Mini Jack
- Composite: RCA
- HDMI
- Network: RJ-45
- RS232: DB-9pin
- S-Video
- USB x 2
- VGA In: Dsub-15pin x 2
- Features
- Closed Captioning
- Geometric Correction
- Blackboard Mode
- Additional Features
- The Auto Input Signal Search function automatically detects the input signal and selects the input channel based on the signal.
