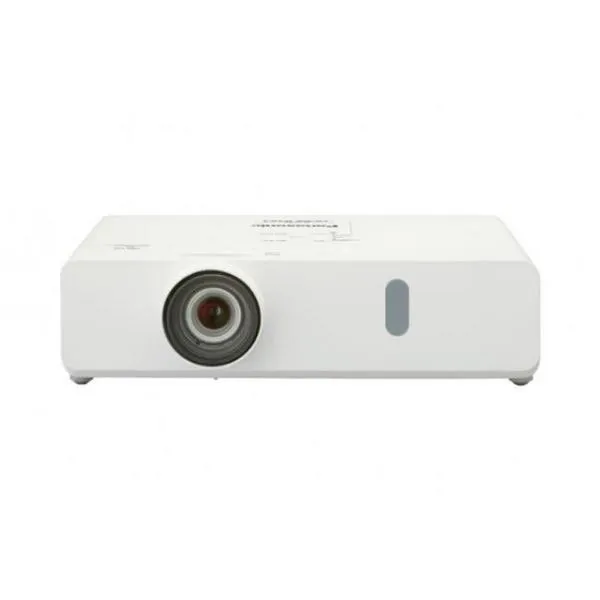

Enjoy bright images in most everyday settings with the Panasonic PT-VX430U 4500-Lumen XGA 3LCD Projector. It sports a 1024 x 768 XGA native resolution for viewing detailed video pictures or data. The projector's 1.18 to 1.9:1 throw ratio offers a range of throw distances for focused images. The PT-VX430U features RCA composite two HDMI and two VGA inputs to connect to nearly any device. Its analog audio input and output will allow you to pass sound through the projector to your sound system of choice and one VGA input can alternately function as an output for daisy-chaining multiple projectors or displays. The projector is controllable via the included remote control Ethernet or RS-232 with various control software options.

Specifications

• White Brightness:4,500 ANSI Lumens
• Resolution:1024x768
• Aspect Ratio:4:3 (XGA)
• Contrast:20,000:1 (full on/off)
• Dynamic Iris:Yes
• Display Type:0.59" 3LCD Chips
• Color Processing:8-bit
• Video Modes:720p, 1080i, 1080p/60, 1080p/24, 1080p/25, 1080p/50, 525i, 525p, 576i, 576p, 1125i, 480p, 480i
• Data Modes:MAX 1920x1200
• Lamp Life:5,000 hours / 7,000 hours (Eco)
• Lamp Model:ET-LAV300 Buy Replacement Lamp
• Included Lens:1.6x manual zoom , manual focus
• Optional Lenses:No
• Lens Shift:No
• Throw Distance:3.8' - 23.6' Calculate Throw Distance
• Image Size:30.00" - 300.00"
• Throw Ratio:1.18:1 - 1.90:1 (D:W)
• Projector Placement
• For a
• 100
• diagonal screen, place the projector lens between 7'-10" and 12'-8" from the screen.
• Digital Keystone:Horizontal & Vertical
• Projector Size:3.86" x 13.86" x 10.98" (HxWxD)
• Weight:7.3 lbs
• Audible Noise:37 dB / 29 dB (Eco)
• Internal Speakers:10.0 Watts Mono
• Power:320 Watts 100V - 240V
• Connection Panel
• Audio In: Mini Jack x 2
• Audio In: RCA
• Audio Out: Mini Jack
• Composite: RCA
• HDMI x 2
• Network: RJ-45
• RS232: DB-9pin
• USB x 2
• VGA In: Dsub-15pin
• VGA Out: Dsub-15pin
• Features
• Geometric Correction
• Blackboard Mode
• Crestron RoomView™
